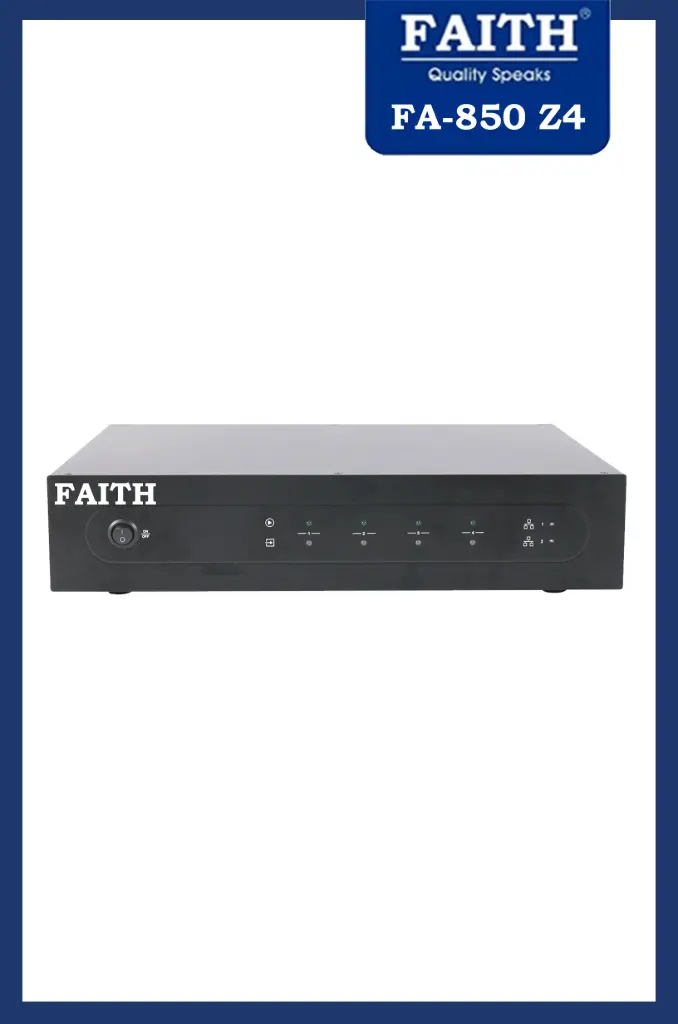

WF-850 Z4 is a multi-room system that enables you to enjoy your favourite music anywhere in your home. This model contains 4 audio amplifiers for you to connect to 4 set of stereo speakers. Each zone also contains analog and digital audio outputs for you to use as audio source. You can easily play music from online music services, your phone storage, Spotify and other sources by using WIIM HOME app on your iOS or Android device.
| Model |
| FA-850 Z4 |
| Power RMS |
| 8*50W, 4 Zone Stereo |
| Line in | Max 2V RMS input |
| Audio input | Optical in | Max 192kHz/24bit sample rate decode PCM encoding |
| USB | USB disk drive playback |
| Audio output | Pre out | Max 2V RMS input |
| Coaxial out | 44.1Khz/16bit output |
| Speaker out | 50W per channel @ 8ohm,
Bridged amplifier mode 100W @ 4ohm per channel |
|
| Master Input Source |
| Audio Input | Line in | Max 2V RMS input |
| Optical in | Max 192kHz/24bit sample rate decode |
| Coaxial in | PCM encoding |
|
| Network |
| Ethernet In | Rj45 | Connect to internet |
| Ethernet Out | Rh45 | Output to other device to share the network |
|
| Music Sources |
| Streaming Protocol |
| Spotify Connect, Airplay, DLNA, UPnP, Qplay
Spotify, Tidal, Deezer, Qobuz, Naspter, Pandora, Amazon Music, |
| Online Music |
| Internet Radio, iHeartRadio, vTuner |
| Local Music |
| Mobile device music, NAS storage music files, USB disk drive music files |
| Multizone Function |
| 1.By Master input source
2.By APP to setup one zone as master to sync music to other zone |
|
| General |
| Power |
| 115-230V AC 50/60Hz |
| Control Interface |
| Dual-way RS232 |
| Size |
| 2U rack size |
